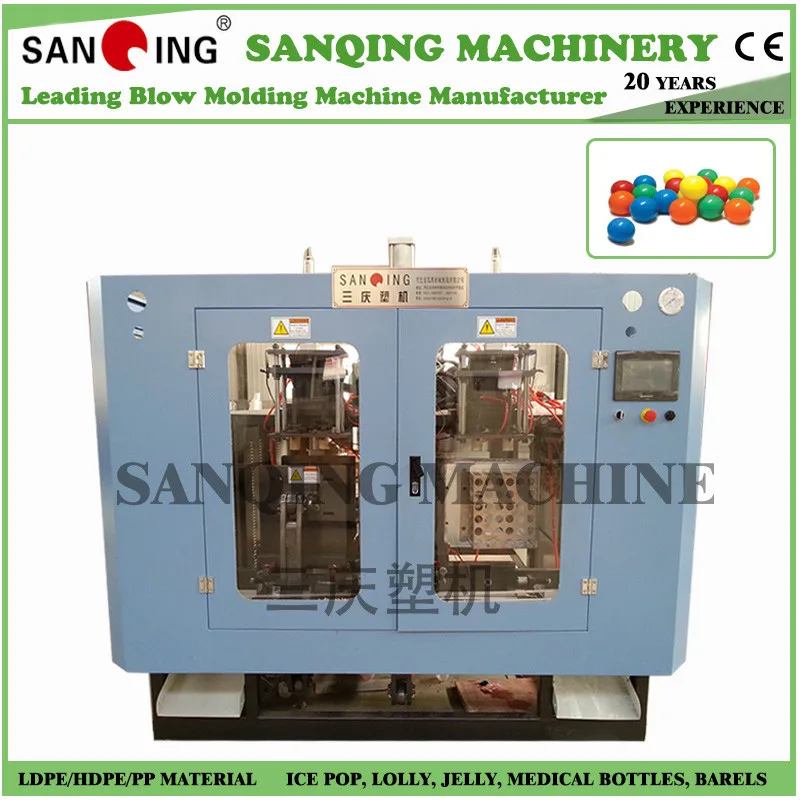

PE 15kW Automatic Extrusion Blow Molding Machine For Toys

Hebei Sanqing Machinery Manufacture Co., Ltd.
Contact Now

PE 15kW Automatic Extrusion Blow Molding Machine For Toys

  • 1
  • 2

Brand Name : Sanqing

Model Number : SQ-11

Certification : CE ISO

Place of Origin : Hebei, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 10 sets/month

Delivery Time : 45 days

Packaging Details : Angle frame with outside wooden case

Name : Baby Plastic Ball Pit Balls, Toy Soft Ldpe Ocean Ball For Pool Automatic Extrusion Blow Moulding Machine

Plastic Processed : PE

Dimension : 3.43*2.2*2.35m

Weight : 1500kg

Application Industries : Toys

Power : 15kW

Contact Now

Name

Baby Plastic Ball Pit Balls, Toy Soft Ldpe Ocean Ball For Pool Automatic Extrusion Blow Moulding Machine

Product Description

whatsapp wechat 0086 15530731271 ; william_sanqing@126.com

Production capicity 2000 pcs to 2500 pcs per hour

Full automatic Double heads double workstation : 6 TO 8 cavity

The ball sizes from 50 to 80mm,the weight from 3 to 12grams.

Average working Power: (15KW/H)

This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

1,Screw Diameter) : 65mm

2, (L/D ratio) : 25:1

3, (Motor Power) : 15kw

4, (Screw Speed) :20-60r/min

5,(Max. Plasticizing capacity) : 60kg/h

6, (No. of die head) :2

7, (Distance of die head center) :110mm

8, (Max. Clamping force) :35KN

9, (Working Pressure) :0.6-0.8Mpa

10, (Max. bottle volume) :3000ml

11, (Weight):3500kg

12, (Way of control):(PLC computer control)

13, (Way of control speed):(Frequency control)

14,(Size):L*W*H=2.5M*2.1M*1.7M)

15,(Average Power): (15KW/H)

PE 15kW Automatic Extrusion Blow Molding Machine For ToysPE 15kW Automatic Extrusion Blow Molding Machine For ToysPE 15kW Automatic Extrusion Blow Molding Machine For ToysPE 15kW Automatic Extrusion Blow Molding Machine For Toys

PE 15kW Automatic Extrusion Blow Molding Machine For Toys

Semi-automatic Seaball Blowing Machine(Cheaper):

Packaging & Shipping

We pack machines by steel frame and closed by wood frame. It is very strong packing, the machine will not be broken.

PE 15kW Automatic Extrusion Blow Molding Machine For ToysPE 15kW Automatic Extrusion Blow Molding Machine For Toys

Our Services

Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free

Production Process
Production Process PE 15kW Automatic Extrusion Blow Molding Machine For Toys

Company Information

Hebei Sanqing Machiney Manufactuer Co.,Ltd.is a professional manufactuer of blow molding machine ,which is located in Cangzhou city,Hebei province ,China and with the experience over 20years .Our company occupies an area of 100,000 square meters.

The SQ series machine are suitable to produce hollow product with raw material PE ,PP,PVC,EVA,PS and etc.

Our company already passed ISO9001 and CE certificates.Sanqing machines have been used in some famous brand such as " WaHaa","Xiao Yang Ren","Harbin Pharmaceutical Group "and exported to Phillipine,Brazil,India,Saudi Arabia,Egypt,Russia and etc.
