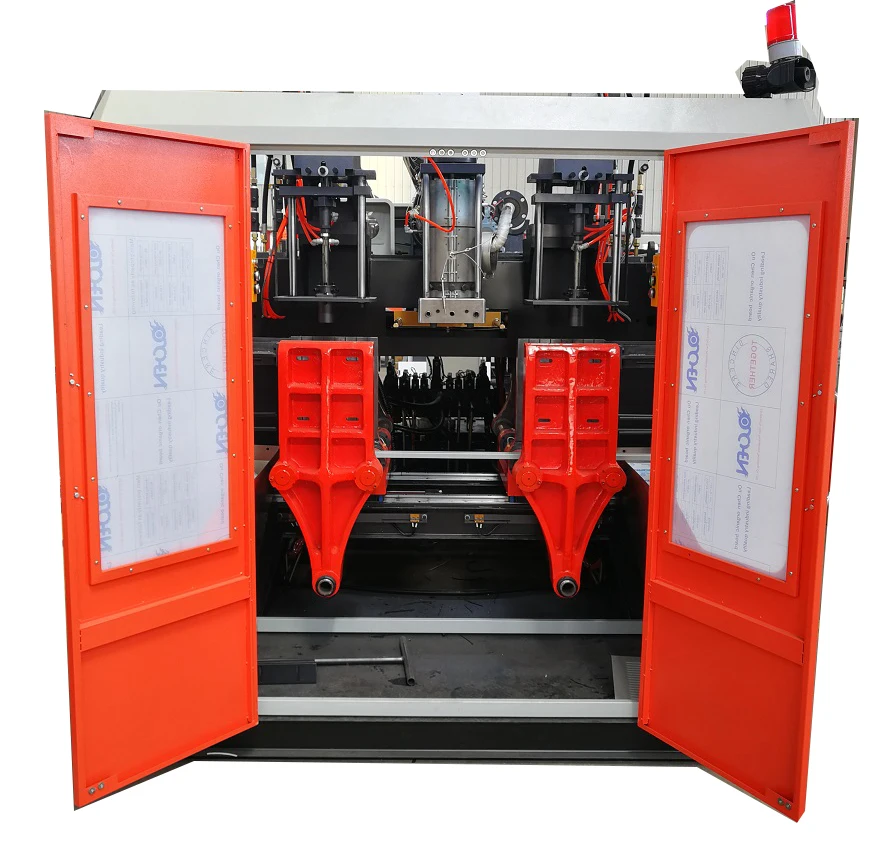

Dia 30cm Plastic Container Blowing Machine 57KW 5 Ltr Blow Moulding PLC Control

Name: Dia 30cm Plastic Container Blowing Machine 57KW 5 Ltr Blow Moulding PLC Control
Brand: Sanqing
Price: 1 USD

Dia 30cm Plastic Container Blowing Machine 57KW 5 Ltr Blow Moulding PLC Control Manufactures

Brand Name : Sanqing

Model Number : SQ-11

Certification : CE ISO9001

Place of Origin : Hebei, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50 sets/month

Delivery Time : 45 days

Packaging Details : Angle frame with outside wooden case

Name : 5L 10L HDPE Plastic Container Blowing Machine Price, High Quality Blow Molding Machine

Voltage : 380V 50Hz

Clamping Force : None

Certificate : CE

Hollow Part Volume : 10L

Power : 57kW

Contact Now

Product Name

5L 10L HDPE Plastic Container Blowing Machine Price, High Quality Blow Molding Machine

Product Description

Product Application

Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product. This type of hydraulic powered blow molding machine is able to produce until 5 Liter. The application could be water bottles, jerry cans, oil bottles and etc.

The machine is suitable to produce single layer, three layer and viewline bottles, it is good to produce plastic material such as HDPE/PP/LDPE.

This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.

SPECIFICATIONS FOR 10 L Blow Molding Machine
Product Range	Max. Product Volume	10 L
	Product Max. Dia.	30 CM
	Thickness of Mould	400 mm
	Width of Mould Board	450 mm
	Distance of Mould Board	400 mm
	Production Speed	200-300 PCS/HR
	Applicable Raw Material	HDPE/LDPE/PP
	Distance of Mold	400 mm
	Force of Closing Mold	80 KN
Machine Parameters	Screw Dia.	80 mm
	Screw Rod Length/Dia. Ratio	25:1
	Speed Control Method	PLC
Energy Consumption	Heating Power	16 KW
	Hydraulic Pump Power	11 KW
	Extruder Motor Power	22 KW
	Air Consumption	0.6 m3/Min.
Machine Dimension and weight	Dimension	4200x 220x2800mm
Machine Dimension and weight	Weight	8 Ton
