Plastic Hopper Dryer Auxiliary Machine Capacity 5kg 1.73kW

Hopper dryers can also be called ordinary dryers, which are the most economical dryers for dry plastic raw materials. This hopper
dryers can be used together with the injection molding machine, simple and efficient! Hopper dryer is standard hot air dryer
replacement products, based on the original features fully take into account environmental factors, to be improved. It can dry raw
materials that are damp due to packaging, shipping or recycling.

Main features
1, the use of uniform distribution of hot air of high-performance hot air diffusion devices, plastic drying temperature to
maintain uniform, increase drying efficiency.
2, unique hot air pipe design, can avoid the accumulation of dust at the bottom of the electric heater, causing the combustion.
3, barrel and internal parts are made of stainless steel.
4, barrel separation from the bottom, clean the material convenient, fast material change.
5, the use of proportional deviation temperature controller can accurately control the temperature.
6, a double overheat protection device, can reduce the human or mechanical failure caused by accidents.
7, a variety of models are available preheating timing device, microcomputer control, and double insulation barrel selection.
8, all digital P.I.D control LED status display.
9,0-99 hours timer automatically boot.
10, to provide intermittent drying methods, in order to achieve the purpose of saving electricity. (8-10 SHD-DT series only)
11, transparent window type magnet base.

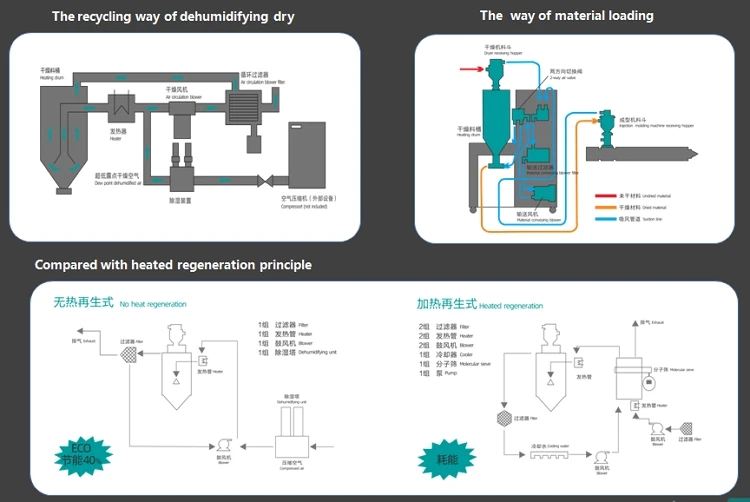

Hopper dryer works:
In the raw material processing, the hopper dryer blows the constant high temperature wind into the drying barrel through the
drying fan, and after the raw materials are baked, the original moisture in the raw material in the barrel is taken away to
achieve the purpose of removing the moisture contained in the raw materials. The air blown by the fan turns into a
high-temperature dry hot air after electric heating, and the hot air can be uniformly dispersed in the dry air drier by the screen
protector and the hole screen. Optional hot air recovery device, the wind blowing through the return air filter into the dry fan
to form a closed loop, saving electricity.

Hopper dryer application area:
Hopper dryer is the most effective and economical model for drying plastic materials, which can dry the raw materials that are
damp, packed, transported or recycled. The straight-through design is particularly suitable for direct mounting on plastic molding
machines for drying, both fast and space-saving. This type of blowing hot air dryer can provide a charge of 12 to 1,000 kg, is
divided into thirteen models.
